NEW Cut To Size Panel For VHF, GPS Equipment here.

Installation Filler Panels for GPS or MFD Boat Installations

GPS or MFD Boat Dash Adapter Panel

Installation Filler Panels for GPS or MFD Boat Installations

Item #: M0210

Select color:
Choose Model:
Choose Holes:
Stock Status:
Delivery Time
GPS or MFD Filler Panel - - flush mount filler panel for some of the most popular boat navigation devices.
  • Cut-to-size 1/4" thick laminated acrylic with MFD model specific cutouts for boat instrument panels.
  • Save hours of your valuable time by using our standard size filler panels.
  • Available in either a white or black. Reversible: one side is matte finish, the other side a gloss finish. Choose the one that fits your console.
  • Material is UV stabilized and withstands 175-degree F temperatures without deforming.
  • Standard filler plates for models from Simrad®, Humminbird® and Raymarine®.
  • Models are:
    • Simrad® CruiseTM 5.

    • Humminbird® HelixTM 5.

    • Raymarine® AxionTM 7.

    • Raymarine® AxionTM 9.

    • Simrad® CruiseTM 9.

    • Raymarine® Axion ProTM 9.

    • Raymarine® eS-Series eS9x.

    • Raymarine® NSS7.

    • Raymarine® NSS12.

    • Garmen® - see Item M0209 for specific models.
  • All adapter plates have holes for #8 screws or bolts to secure to your base panel. If you do not require holes, choose "No Mounting Holes" in the dropdown box.

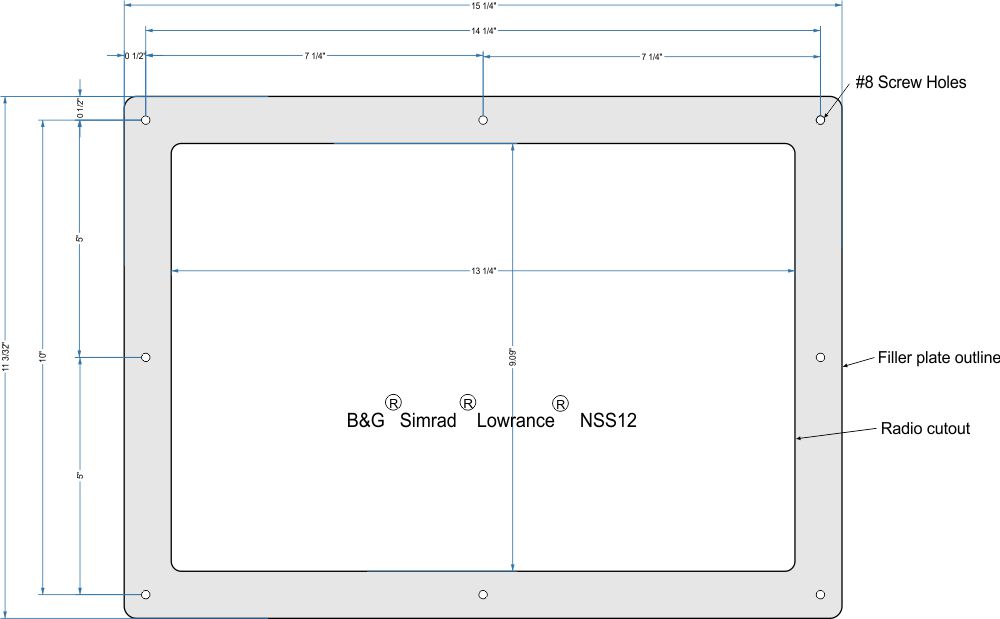

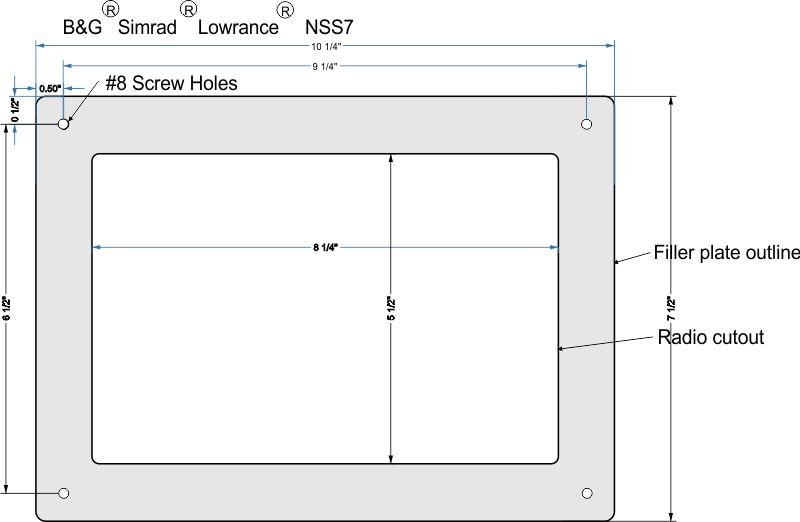

  • Before ordering you must check the required cutout size in your GPS manual and match it to our drawings. We cannot be responsible for those instances when manufacturers have changed specs without notice.
  • Standard overall size of the panels are approximately 1" per side larger in size than the cutout hole for the GPS to cover the unsightly edges of the old dash holes.
Too large? Too Small? More Holes? Without holes for adhesives? If you need a custom plate, please use the Request Custom Quote link at top of this page or in the menu bar of a mobile device.

MODEL NOT SHOWN? See new item # J0562.
