Custom Legend Plate

Custom Legend Plate

Custom Legend Plate

Item #: J0680

$11.95
Line 1:
Line 2 (optional):
Pick color:
Qty:
Delivery Time

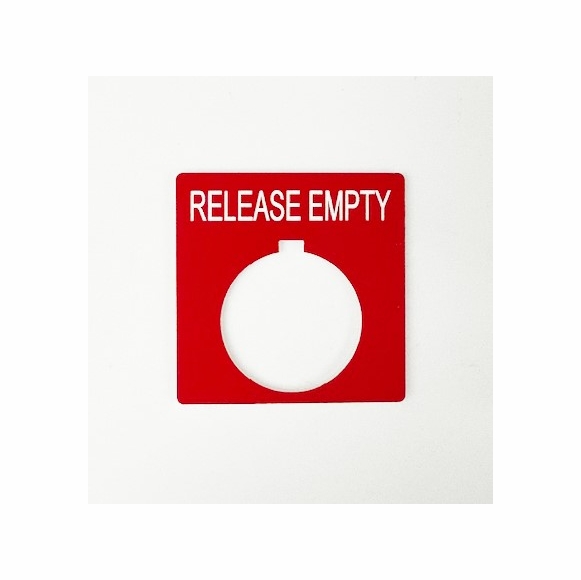

Legend Plate -- Custom legend plate for 30mm push buttons, selector switches or indicator lamps. Also referred to as a lamacoid label, electrical panel label, control panel nameplate, or machine data plate. Twelve color choices. Made in USA.
  • Made from sturdy, UV-stabilized 1/16" thick laminated acrylic plastic.
  • The characters are permanently laser engraved, not just printed or silk screed on.
  • For indoor or outdoor use.
  • Displays up to two lines of ten characters each. With one line, the character height is approximately .250" With two lines letter height is approximately .150". If you require a three line plate, see item # M0166.

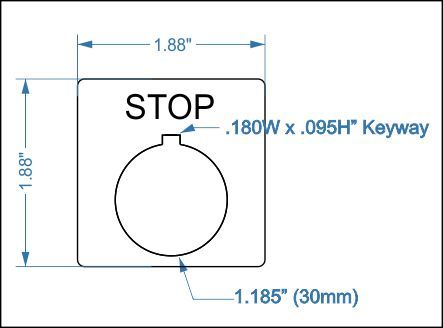

  • Approx 1.875"W x 1.875"H x 1/16" thick. Square shape.
  • Hole is 1.185" (30mm) diameter nominal.
  • Legends will be engraved as entered. For example you might want all capitals like "CONTROL" or mixed case like "Control" or all lower case like "control".
  • Special note: If you need split lettering on any line--enter the left word then a comma, then the right word. For example if you wish the letters FWD on the left switch position and REV on the right switch position, enter the line as FWD,REV.
  • Legend plate is held in position with the retaining ring used on your switch or indicator (keyway is .177"W x .095"H).

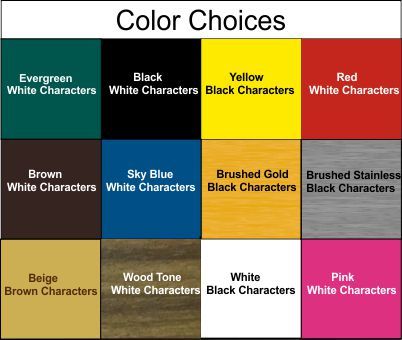

  • Colors choices: sky blue; black; white; brushed gold; brushed stainless; evergreen; red; yellow; brown; beige; pink; and wood tone. Wood tone is for indoor use only.
  • Custom made to order.
  • Comfort House J0680.
Need a special size or shape? Click on Request Custom Quote at the top of the page on a desktop or in the menu bar of a mobile device.
