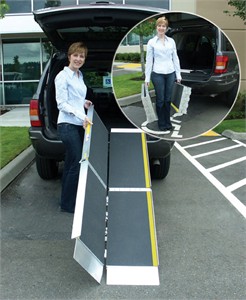

Trifold wheelchair ramp
|
Trifold Ramp is designed for scooters and wheelchairs. Provides the necessary length for wheelchairs and scooters to easily access steps, vehicles, and raised landings.
EZ-ACCESS® TRIFOLD® Advantage Series® Ramp can be carried as one unit or can be separated into two individual lighter-weight sections, each with its own handle.
This wheelchair and scooter ramp has an applied skid-resistant surface with reflective safety stripes. Self-adjusting bottom transition plate helps move from ramp to ground.
Available in five sizes: 5', 6', 7', 8', and 10' lengths.
5' Trifold ramp for curbs, 1-2 steps, and some minivans has a usable size of 5' x 29.5". Folded size: 30.75"L x 15"W x 11.5"H; total weight 32 pounds.
6' Trifold ramp for 1-3 steps, minivans, some vans & SUVs has a usable size of 6' x 29.5". Folded size: 36.75"L x 15"W x 11.5"H; total weight 38 pounds.
7' Trifold ramp for 1-3 steps, minivans, some vans & SUVs has a usable size of 7' x 29.5". Folded size: 42.75"L x 15"W x 11.5"H; total weight 44 pounds.
8' Trifold ramp for 2-3 steps, minivans, some vans & SUVs has a usable size of 8' x 29.5". Folded size: 48.75"L x 15"W x 11.5"H; total weight 50 pounds.
10' Trifold ramp for 2-4 steps, minivans, some vans & SUVs has a usable size of 10' x 29.5". Folded size: 60.75"L x 15"W x 11.5"H; total weight 60 pounds.
All Trifold ramps have a usable width of 29.5" and a folded width of 15". Weight capacity of all ramps is 800 pounds. Manufactured of welded aircraft-grade aluminum.
Refer to the Ramp Chart to help choose the
proper length for your ramp.
Optional Top Lip Extension (TLE) plate (sold separately below) increases the Trifold ramp's standard 3" lip to become 9", allowing the ramp to clear the rear bumper of an SUV or van.
|
|
 |
 |  Optional Top Lip Extension for EZ-Access Trifold or Suitcase Advantage Please click image to enlarge. Optional top lip extension (TLE) plate increases the standard 3" lip to become 9", which allows the ramp to clear the rear bumper of an SUV or van. Usable size: 8.5"L x 13.875"W x 2.375"H. Shipped as a pair. Order item 62766F.
|
|
   |
